Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Overload release current setting125 - 250A
Rated voltage690 - 690V
Rated permanent current Iu250A
Adjustment range short-term delayed short-circuit release250 - 2500A
Adjustment range undelayed short-circuit release3000 - 3000A
Number of auxiliary contacts as normally open contact0
DIN rail (top hat rail) mounting optionalYes
Type of electrical connection of main circuitScrew connection
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz150kA
Device constructionBuilt-in device fixed built-in technique
Number of auxiliary contacts as normally closed contact0
Integrated earth fault protectionNo
Number of auxiliary contacts as change-over contact0
Suitable for DIN rail (top hat rail) mountingNo
With switched-off indicatorNo
With integrated under voltage releaseNo
Complete device with protection unitYes
Number of poles3
Motor drive integratedNo
Motor drive optionalYes
Position of connection for main current circuitFront side
Type of control elementRocker lever
Degree of protection (IP)IP20
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

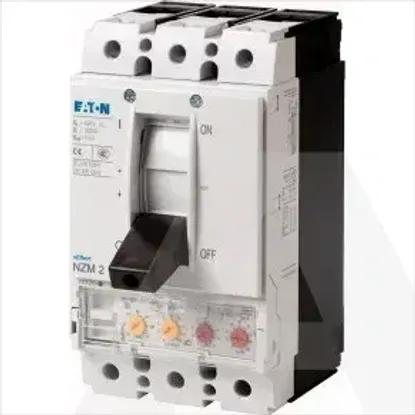

NZMH2-VE250
