Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally open contact0
Position of connection for main current circuitFront side
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Rated voltage690 - 690V
Degree of protection (IP)IP20
With integrated under voltage releaseNo
Rated permanent current Iu630A
Overload release current setting315 - 630A
Number of auxiliary contacts as normally closed contact0
Number of poles3
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionNo
Motor drive optionalYes
Type of control elementRocker lever
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
Complete device with protection unitYes
With switched-off indicatorNo
Type of electrical connection of main circuitScrew connection
Adjustment range short-term delayed short-circuit release472 - 4410A
Adjustment range undelayed short-circuit release1260 - 5040A
DIN rail (top hat rail) mounting optionalNo
Suitable for DIN rail (top hat rail) mountingNo
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

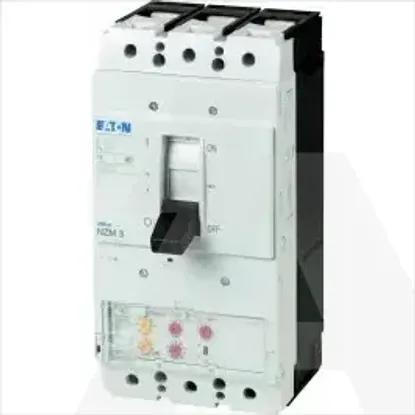

NZMN3-VE630
