Details
- •Low-voltage industrial components

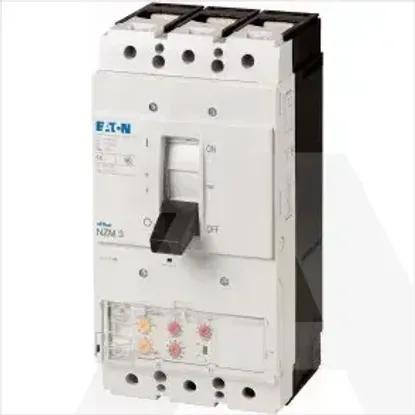

- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz150kA
Rated voltage690 - 690V
Adjustment range short-term delayed short-circuit release250 - 2500A
Overload release current setting125 - 250A
Rated permanent current Iu250A
Adjustment range undelayed short-circuit release500 - 2750A
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionNo
DIN rail (top hat rail) mounting optionalNo
Type of electrical connection of main circuitScrew connection
Suitable for DIN rail (top hat rail) mountingNo
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
With switched-off indicatorNo
Number of auxiliary contacts as change-over contact0
Motor drive optionalYes
Type of control elementRocker lever
Complete device with protection unitYes
Position of connection for main current circuitFront side
Motor drive integratedNo
With integrated under voltage releaseNo
Degree of protection (IP)IP20
Number of poles3
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
NZMH3-VE250
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
150kA
Rated voltage
690 .. 690V
Adjustment range short-term delayed short-circuit release
250 .. 2500A
Overload release current setting
125 .. 250A
Rated permanent current Iu
250A
Adjustment range undelayed short-circuit release
500 .. 2750A
Device construction
Built-in device fixed built-in technique
Integrated earth fault protection
DIN rail (top hat rail) mounting optional
Type of electrical connection of main circuit
Screw connection
Suitable for DIN rail (top hat rail) mounting
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
With switched-off indicator
Number of auxiliary contacts as change-over contact
0
Motor drive optional
Type of control element
Rocker lever
Complete device with protection unit
Position of connection for main current circuit
Front side
Motor drive integrated
With integrated under voltage release
Degree of protection (IP)
IP20
Number of poles
3
