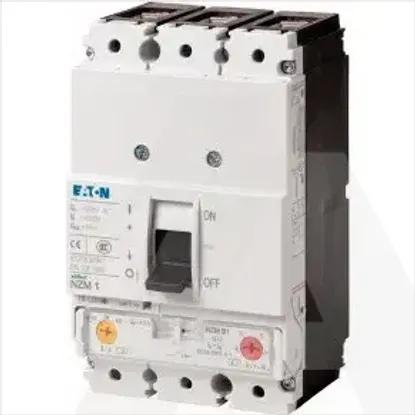

NZMN1-M63
Code: 1028655
ManufacturerEaton
Catalog number265720
TypeNZMN1-M63
CategoryMotor protection circuit-breaker
EAN code4015082657208
Details
- •Low-voltage industrial components
- •Motor protection circuit-breaker
- •1 KOM
- •EATON
Technical specifications
Type of electrical connection of main circuitOther
Rated operating voltage690 - 690V
With integrated auxiliary switchNo
Degree of protection (IP)IP20
Height145mm
Rated operation power at AC-3, 230 V18.5kW
With integrated under voltage releaseNo
Width90mm
With thermal protectionYes
Switch off techniqueThermomagnetic
Depth88mm
Type of control elementRocker lever
Phase failure sensitiveYes
Adjustment range undelayed short-circuit release504 - 882A
Device constructionBuilt-in device fixed built-in technique
Rated operation power at AC-3, 400 V30kW
Rated permanent current Iu63A
Number of poles3
Overload release current setting50 - 63A
Rated short-circuit breaking capacity lcu at 400 V, AC35kA
