Details
- •Low-voltage control systems
- •Motor protection circuit-breaker
- •1 KOM
- •EATON
Technical specifications
Width105mm
Height184mm
Rated operation power at AC-3, 400 V90kW
With integrated auxiliary switchNo
Depth149mm
Degree of protection (IP)IP20
Type of electrical connection of main circuitScrew connection
Phase failure sensitiveNo
Rated operation power at AC-3, 230 V45kW
Rated operating voltage690 - 690V
Overload release current setting125 - 160A
Adjustment range undelayed short-circuit release1280 - 2240A
With integrated under voltage releaseNo
Number of poles3
Switch off techniqueThermomagnetic
Rated short-circuit breaking capacity lcu at 400 V, AC50kA
Rated permanent current Iu160A
Type of control elementRocker lever
Device constructionBuilt-in device fixed built-in technique
With thermal protectionYes
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

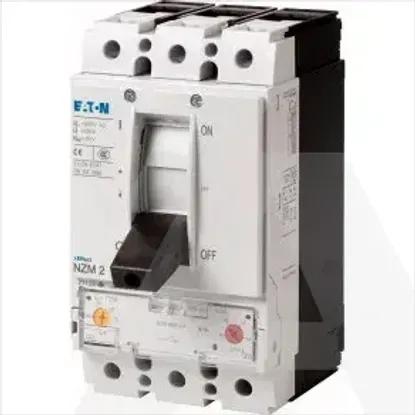

NZMN2-M160
