Details
- •Low-voltage industrial components
- •Motor protection circuit-breaker
- •1 KOM
- •EATON
Technical specifications
Height184mm
Width105mm
Depth149mm
With integrated auxiliary switchNo
Rated operating voltage690 - 690V
With thermal protectionNo
Degree of protection (IP)IP20
With integrated under voltage releaseNo
Type of electrical connection of main circuitScrew connection
Rated operation power at AC-3, 230 V30kW
Type of control elementRocker lever
Device constructionBuilt-in device fixed built-in technique
Adjustment range undelayed short-circuit release8 - 14A
Phase failure sensitiveNo
Switch off techniqueMagnetic
Rated operation power at AC-3, 400 V55kW
Rated permanent current Iu100A
Number of poles3
Overload release current setting0 - 0A
Rated short-circuit breaking capacity lcu at 400 V, AC130kA
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

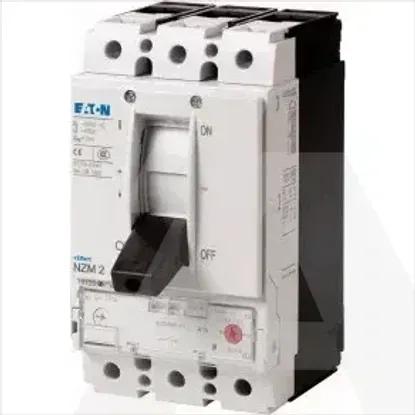

NZMH2-S100
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Motor protection circuit-breaker
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Height
184mm
Width
105mm
Depth
149mm
With integrated auxiliary switch
Rated operating voltage
690 .. 690V
With thermal protection
Degree of protection (IP)
IP20
With integrated under voltage release
Type of electrical connection of main circuit
Screw connection
Rated operation power at AC-3, 230 V
30kW
Type of control element
Rocker lever
Device construction
Built-in device fixed built-in technique
Adjustment range undelayed short-circuit release
8 .. 14A
Phase failure sensitive
Switch off technique
Magnetic
Rated operation power at AC-3, 400 V
55kW
Rated permanent current Iu
100A
Number of poles
3
Overload release current setting
0 .. 0A
Rated short-circuit breaking capacity lcu at 400 V, AC
130kA
