Details
- •Low-voltage industrial components

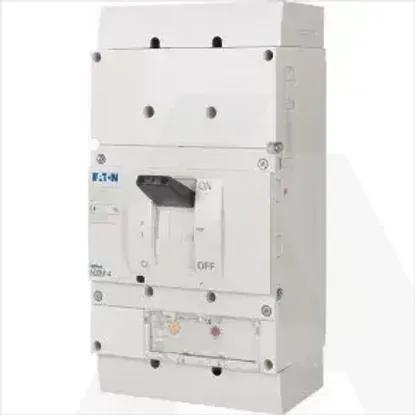

- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Suitable for DIN rail (top hat rail) mountingNo
Number of auxiliary contacts as normally open contact0
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz37kA
Number of poles3
Degree of protection (IP)IP20
With switched-off indicatorNo
Number of auxiliary contacts as change-over contact0
Adjustment range short-term delayed short-circuit release0 - 0A
Number of auxiliary contacts as normally closed contact0
Rated voltage690 - 690V
With integrated under voltage releaseNo
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Adjustment range undelayed short-circuit release1260 - 7560A
Rated permanent current Iu630A
Type of control elementRocker lever
Overload release current setting315 - 630A
Position of connection for main current circuitFront side
Complete device with protection unitYes
Integrated earth fault protectionNo
DIN rail (top hat rail) mounting optionalNo
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalYes
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
NZMN4-AE630
