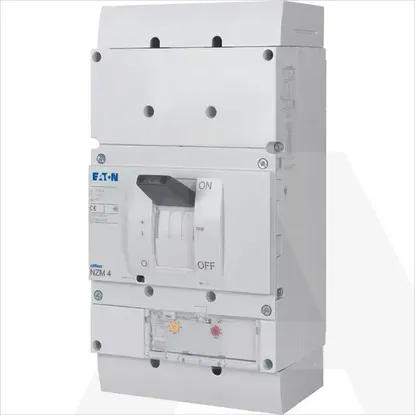

Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Rated permanent current Iu1000A
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Overload release current setting500 - 1000A
Number of poles3
Rated voltage690 - 690V
Degree of protection (IP)IP20
Position of connection for main current circuitFront side
Motor drive integratedNo
With integrated under voltage releaseNo
Type of electrical connection of main circuitScrew connection
Suitable for DIN rail (top hat rail) mountingNo
Adjustment range undelayed short-circuit release2000 - 12000A
With switched-off indicatorNo
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz37kA
Type of control elementRocker lever
Adjustment range short-term delayed short-circuit release0 - 0A
Integrated earth fault protectionNo
Device constructionBuilt-in device fixed built-in technique
DIN rail (top hat rail) mounting optionalNo
Motor drive optionalYes
Complete device with protection unitYes
