Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Rated permanent current Iu630A
Overload release current setting315 - 630A
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionNo
Adjustment range undelayed short-circuit release1260 - 7560A
Adjustment range short-term delayed short-circuit release630 - 6300A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as normally closed contact0
Number of poles3
DIN rail (top hat rail) mounting optionalNo
With switched-off indicatorNo
With integrated under voltage releaseNo
Rated voltage690 - 690V
Position of connection for main current circuitFront side
Type of control elementRocker lever
Degree of protection (IP)IP20
Complete device with protection unitYes
Motor drive integratedNo
Suitable for DIN rail (top hat rail) mountingNo
Motor drive optionalYes
Number of auxiliary contacts as normally open contact0
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

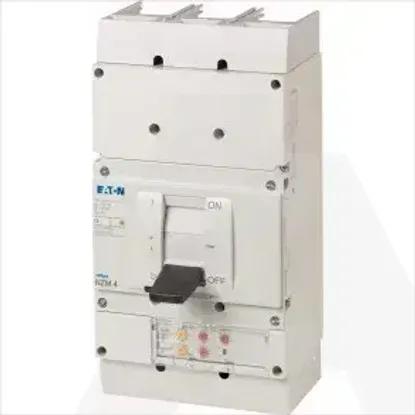

NZMH4-VE630
