Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Rated permanent current Iu1000A
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
With integrated under voltage releaseNo
Number of poles3
Position of connection for main current circuitFront side
Number of auxiliary contacts as change-over contact0
Rated voltage690 - 690V
Overload release current setting500 - 1000A
Degree of protection (IP)IP20
Type of electrical connection of main circuitScrew connection
Adjustment range short-term delayed short-circuit release1000 - 10000A
Adjustment range undelayed short-circuit release2000 - 12000A
Integrated earth fault protectionNo
Type of control elementRocker lever
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
Complete device with protection unitYes
DIN rail (top hat rail) mounting optionalNo
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalYes
With switched-off indicatorNo
Suitable for DIN rail (top hat rail) mountingNo
Motor drive integratedNo
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

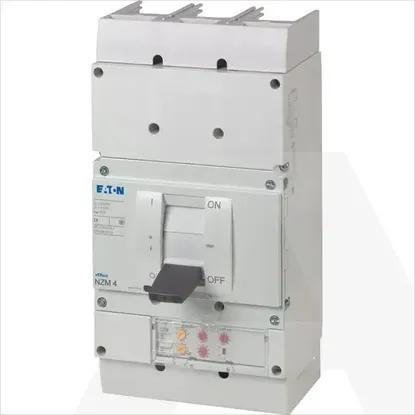

NZMH4-VE1000
