Details
- •Low-voltage industrial components

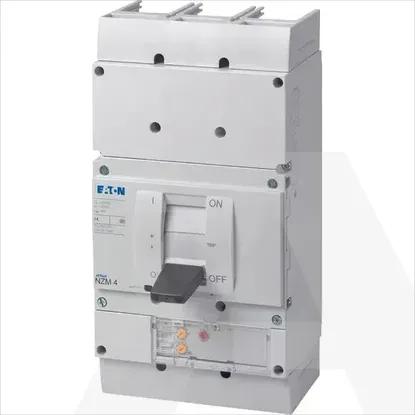

- •Motor protection circuit-breaker
- •1 KOM
- •EATON
Technical specifications
Rated operating voltage690 - 690V
Rated operation power at AC-3, 400 V500kW
Height207mm
With thermal protectionYes
Degree of protection (IP)IP20
Overload release current setting438 - 875A
Depth401mm
Width210mm
Number of poles3
Type of electrical connection of main circuitScrew connection
With integrated auxiliary switchNo
With integrated under voltage releaseNo
Rated short-circuit breaking capacity lcu at 400 V, AC26kA
Rated operation power at AC-3, 230 V250kW
Adjustment range undelayed short-circuit release875 - 12250A
Switch off techniqueElectronic
Type of control elementRocker lever
Rated permanent current Iu875A
Phase failure sensitiveYes
Device constructionBuilt-in device fixed built-in technique
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
NZMN4-ME875
