Details
- •Low-voltage industrial components

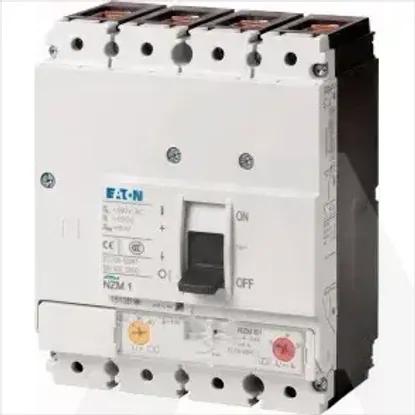

- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu63A
Type of control elementRocker lever
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
Type of electrical connection of main circuitFrame clamp
Overload release current setting50 - 63A
With switched-off indicatorNo
Suitable for DIN rail (top hat rail) mountingNo
With integrated under voltage releaseNo
Degree of protection (IP)IP20
Adjustment range undelayed short-circuit release6 - 10A
Motor drive integratedNo
Rated voltage690 - 690V
Number of auxiliary contacts as change-over contact0
Position of connection for main current circuitFront side
Adjustment range short-term delayed short-circuit release0 - 0A
Number of poles4
Device constructionBuilt-in device fixed built-in technique
DIN rail (top hat rail) mounting optionalYes
Complete device with protection unitYes
Motor drive optionalNo
Integrated earth fault protectionNo
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
NZMN1-4-A63
