Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Rated permanent current Iu400A
Number of auxiliary contacts as change-over contact0
With integrated under voltage releaseNo
Number of auxiliary contacts as normally open contact0
Overload release current setting200 - 400A
Degree of protection (IP)IP20
Position of connection for main current circuitFront side
Number of poles4
Rated voltage690 - 690V
Adjustment range short-term delayed short-circuit release0 - 0A
With switched-off indicatorNo
Type of control elementRocker lever
Adjustment range undelayed short-circuit release800 - 4400A
Type of electrical connection of main circuitScrew connection
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
Integrated earth fault protectionNo
Motor drive optionalYes
DIN rail (top hat rail) mounting optionalNo
Device constructionBuilt-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mountingNo
Complete device with protection unitYes
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

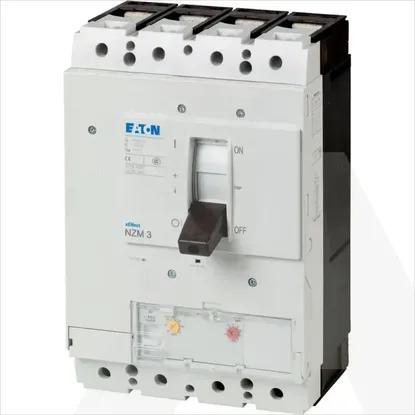

NZMN3-4-AE400
