Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally closed contact0
Overload release current setting800 - 1600A
Integrated earth fault protectionNo
Type of control elementRocker lever
Adjustment range short-term delayed short-circuit release0 - 0A
With integrated under voltage releaseNo
Motor drive integratedNo
Number of auxiliary contacts as change-over contact0
Adjustment range undelayed short-circuit release3200 - 19200A
With switched-off indicatorNo
Suitable for DIN rail (top hat rail) mountingNo
Device constructionBuilt-in device fixed built-in technique
Degree of protection (IP)IP20
DIN rail (top hat rail) mounting optionalNo
Position of connection for main current circuitFront side
Number of auxiliary contacts as normally open contact0
Motor drive optionalYes
Type of electrical connection of main circuitScrew connection
Complete device with protection unitYes
Rated permanent current Iu1600A
Number of poles4
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz37kA
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

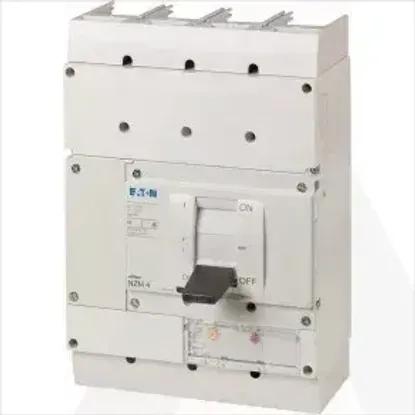

NZMN4-4-AE1600/1000
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Number of auxiliary contacts as normally closed contact
0
Overload release current setting
800 .. 1600A
Integrated earth fault protection
Type of control element
Rocker lever
Adjustment range short-term delayed short-circuit release
0 .. 0A
With integrated under voltage release
Motor drive integrated
Number of auxiliary contacts as change-over contact
0
Adjustment range undelayed short-circuit release
3200 .. 19200A
With switched-off indicator
Suitable for DIN rail (top hat rail) mounting
Device construction
Built-in device fixed built-in technique
Degree of protection (IP)
IP20
DIN rail (top hat rail) mounting optional
Position of connection for main current circuit
Front side
Number of auxiliary contacts as normally open contact
0
Motor drive optional
Type of electrical connection of main circuit
Screw connection
Complete device with protection unit
Rated permanent current Iu
1600A
Number of poles
4
Rated voltage
690 .. 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
37kA
