Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Depth142mm
Width105mm
Height185mm
Rated permanent current Iu250A
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V0kW
Number of poles3
Version as emergency stop installationYes
Motor drive integratedNo
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as change-over contact0
Version as maintenance-/service switchYes
Conditioned rated short-circuit current Iq0kA
Version as safety switchNo
Rated operating voltage690 - 690V
Type of control elementRocker lever
Rated short-time withstand current lcw3.5kA
Type of electrical connection of main circuitScrew connection
Rated operation power at AC-23, 400 V132kW
Number of switches1
Colour control elementBlack
InterlockableYes
Version as main switchYes
Suitable for distribution board installationYes
Max. rated operation voltage Ue AC690V
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingYes
Motor drive optionalNo
Voltage release optionalNo
Suitable for front mounting centreNo
Suitable for floor mountingYes
Switching power at 400 V0kW
Rated permanent current at AC-21, 400 V0A
Version as reversing switchNo
Device constructionBuilt-in device fixed built-in technique
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V0A
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

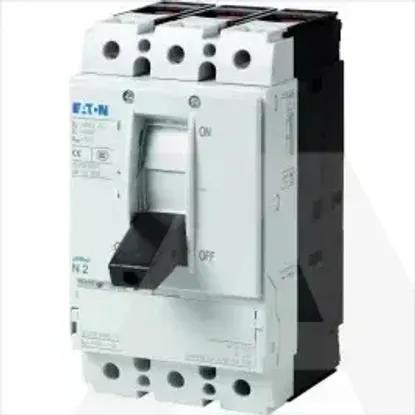

PN2-250
