Details
- •Low-voltage industrial components
- •Motor protection circuit-breaker
- •1 KOM
- •EATON
Technical specifications
With integrated under voltage releaseNo
Depth84.5mm
Rated operation power at AC-3, 400 V18.5kW
Height145mm
With integrated auxiliary switchNo
Width90mm
Rated permanent current Iu40A
Degree of protection (IP)IP20
Rated operating voltage690 - 690V
With thermal protectionNo
Type of electrical connection of main circuitOther
Overload release current setting0 - 0A
Number of poles3
Type of control elementRocker lever
Switch off techniqueMagnetic
Rated short-circuit breaking capacity lcu at 400 V, AC35kA
Rated operation power at AC-3, 230 V11kW
Adjustment range undelayed short-circuit release8 - 14A
Device constructionBuilt-in device fixed built-in technique
Phase failure sensitiveNo
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

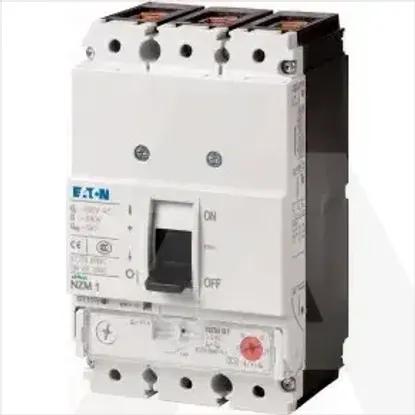

NZMH1-S40
