Details
- •Sensors
- •End switch
- •1 KOM
- •EATON
Technical specifications
Material housingPlastic
Rated operation current Ie at AC-15, 230 V6A
Rated operation current Ie at DC-13, 230 V0.3A
Switching functionSlow-action switch
Number of safety auxiliary contacts1
Explosion safety category for dustNone
Suitable for safety functionsYes
With status indicationNo
Explosion safety category for gasNone
Type of interface for safety communicationNone
Type of electric connectionCable entry metrical
Type of interfaceNone
Rated operation current Ie at DC-13, 125 V0.8A
Output electronicNo
Coating housingOther
Rated operation current Ie at AC-15, 24 V6A
Type of control elementAdjustable rotary lever
Degree of protection (IP)IP66/IP67
Rated operation current Ie at AC-15, 125 V6A
Construction type housingCuboid
Forced openingYes
Diameter sensor0mm
Length of sensor33.5mm
Rated operation current Ie at DC-13, 24 V3A
Switching function latchingNo
Number of contacts as normally closed contact1
Width sensor31mm
Ambient temperature during operating-25 - 70°C
Height of sensor61mm
Degree of protection (NEMA)Other
Number of contacts as normally open contact1
Number of contacts as change-over contact0
Alignment of the control elementRoller cam crossed
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

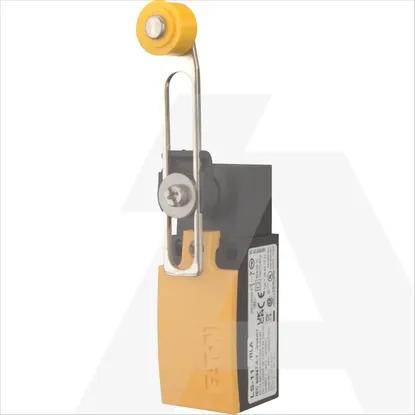

LS-11/RLA
