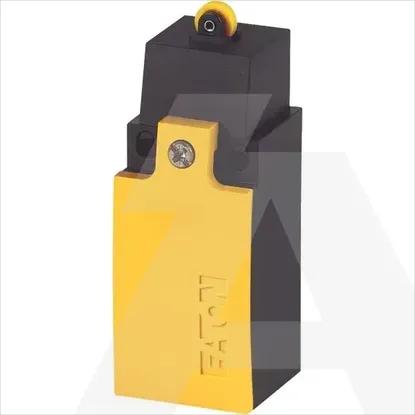

Details
- •Sensors
- •End switch
- •1 KOM
- •EATON
Technical specifications
Explosion safety category for dustNone
Type of interface for safety communicationNone
Material housingPlastic
Construction type housingCuboid
With status indicationNo
Rated operation current Ie at AC-15, 230 V6A
Degree of protection (IP)IP66/IP67
Rated operation current Ie at DC-13, 230 V0.3A
Explosion safety category for gasNone
Type of electric connectionCable entry metrical
Suitable for safety functionsYes
Switching functionQuick-break switch
Coating housingOther
Number of safety auxiliary contacts1
Output electronicNo
Length of sensor33.5mm
Type of interfaceNone
Degree of protection (NEMA)Other
Rated operation current Ie at DC-13, 24 V3A
Diameter sensor0mm
Type of control elementRoller cam
Number of contacts as normally open contact1
Switching function latchingNo
Alignment of the control elementRoller cam straight
Rated operation current Ie at AC-15, 24 V6A
Number of contacts as normally closed contact1
Rated operation current Ie at AC-15, 125 V6A
Forced openingYes
Height of sensor61mm
Width sensor31mm
Ambient temperature during operating-25 - 70°C
Number of contacts as change-over contact0
Rated operation current Ie at DC-13, 125 V0.8A
