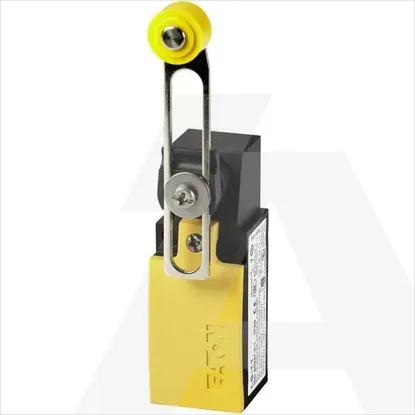

Details
- •Sensors
- •End switch
- •1 KOM
- •EATON
Technical specifications
Material housingPlastic
Rated operation current Ie at AC-15, 230 V6A
Rated operation current Ie at DC-13, 230 V0.3A
With status indicationNo
Coating housingOther
Suitable for safety functionsYes
Type of interface for safety communicationNone
Type of electric connectionCable entry metrical
Switching functionQuick-break switch
Type of interfaceNone
Number of safety auxiliary contacts1
Output electronicNo
Explosion safety category for gasNone
Type of control elementAdjustable rotary lever
Explosion safety category for dustNone
Rated operation current Ie at AC-15, 125 V6A
Construction type housingCuboid
Degree of protection (IP)IP66/IP67
Rated operation current Ie at AC-15, 24 V6A
Forced openingYes
Ambient temperature during operating-25 - 70°C
Rated operation current Ie at DC-13, 125 V0.8A
Diameter sensor0mm
Number of contacts as change-over contact0
Length of sensor33.5mm
Rated operation current Ie at DC-13, 24 V3A
Height of sensor61mm
Switching function latchingNo
Number of contacts as normally closed contact1
Degree of protection (NEMA)Other
Number of contacts as normally open contact1
Width sensor31mm
Alignment of the control elementRoller cam crossed
