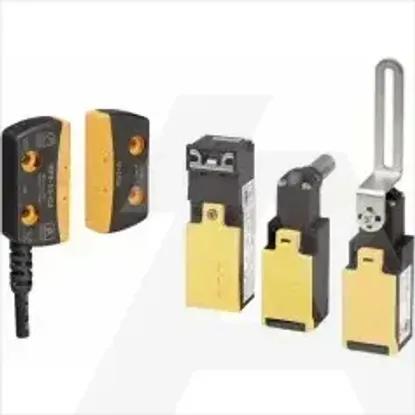

LSM-11
Code: 1030071
Details
- •Sensors
- •End switch
- •1 KOM
- •EATON
Technical specifications
Width sensor31mm
Rated operation current Ie at AC-15, 24 V6A
Rated operation current Ie at AC-15, 125 V6A
Rated operation current Ie at AC-15, 230 V6A
Length of sensor33.5mm
Height of sensor61mm
Diameter sensor0mm
Rated operation current Ie at DC-13, 24 V3A
Type of interfaceNone
Output electronicNo
Forced openingYes
Rated operation current Ie at DC-13, 230 V0.3A
Number of contacts as change-over contact0
Number of safety auxiliary contacts0
Type of control elementPlunger
Switching functionSlow-action switch
Type of electric connectionCable entry metrical
Number of contacts as normally closed contact1
Number of contacts as normally open contact1
Material housingMetal
Construction type housingCuboid
Explosion safety category for dustNone
Switching function latchingNo
Degree of protection (NEMA)Other
Type of interface for safety communicationNone
Suitable for safety functionsYes
Explosion safety category for gasNone
Coating housingOther
Rated operation current Ie at DC-13, 125 V0.8A
Degree of protection (IP)IP66/IP67
With status indicationNo
Alignment of the control elementRoller cam straight
Ambient temperature during operating-25 - 70°C
