Details
- •Sensors
- •End switch
- •1 KOM
- •EATON
Technical specifications
Type of interfaceNone
Suitable for safety functionsYes
With status indicationNo
Material housingPlastic
Number of safety auxiliary contacts1
Explosion safety category for gasNone
Explosion safety category for dustNone
Switching functionSlow-action switch
Type of electric connectionCable entry metrical
Type of interface for safety communicationNone
Coating housingOther
Construction type housingCuboid
Forced openingYes
Type of control elementRoller lever
Degree of protection (IP)IP66/IP67
Rated operation current Ie at AC-15, 230 V6A
Output electronicNo
Rated operation current Ie at DC-13, 230 V0.3A
Rated operation current Ie at AC-15, 24 V6A
Alignment of the control elementOther
Height of sensor61mm
Width sensor31mm
Length of sensor33.5mm
Switching function latchingNo
Degree of protection (NEMA)Other
Number of contacts as change-over contact0
Rated operation current Ie at AC-15, 125 V6A
Number of contacts as normally closed contact1
Diameter sensor0mm
Ambient temperature during operating-25 - 70°C
Number of contacts as normally open contact1
Rated operation current Ie at DC-13, 24 V3A
Rated operation current Ie at DC-13, 125 V0.8A
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

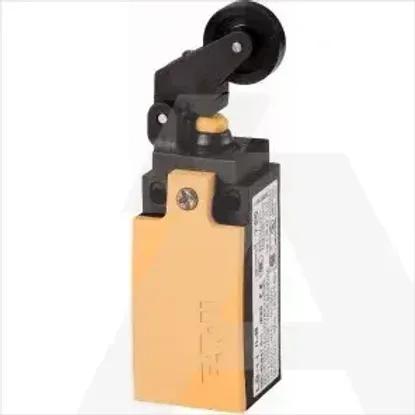

LS-11/LB
