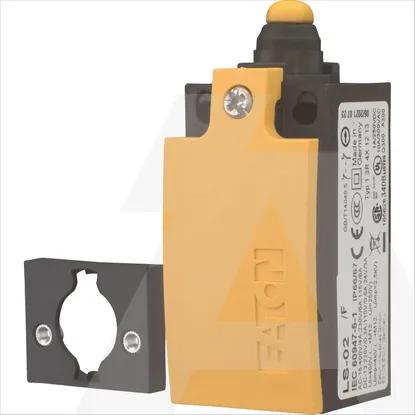

LS-02/F
Code: 1030175
Details
- •Sensors
- •End switch
- •1 KOM
- •EATON
Technical specifications
Width sensor31mm
Height of sensor61mm
Diameter sensor0mm
Length of sensor33.5mm
Rated operation current Ie at AC-15, 24 V6A
Rated operation current Ie at DC-13, 24 V3A
Rated operation current Ie at AC-15, 230 V6A
Rated operation current Ie at AC-15, 125 V6A
Rated operation current Ie at DC-13, 125 V0.8A
Rated operation current Ie at DC-13, 230 V0.3A
Output electronicNo
Forced openingYes
Switching functionSlow-action switch
Switching function latchingNo
Number of contacts as normally closed contact2
Number of safety auxiliary contacts2
Number of contacts as normally open contact0
Type of interfaceNone
Number of contacts as change-over contact0
Type of interface for safety communicationNone
Construction type housingCuboid
Material housingPlastic
Coating housingOther
Type of control elementPlunger
Alignment of the control elementRoller cam straight
With status indicationNo
Explosion safety category for gasNone
Type of electric connectionCable entry metrical
Suitable for safety functionsYes
Explosion safety category for dustNone
Degree of protection (IP)IP66/IP67
Degree of protection (NEMA)Other
Ambient temperature during operating-25 - 70°C
