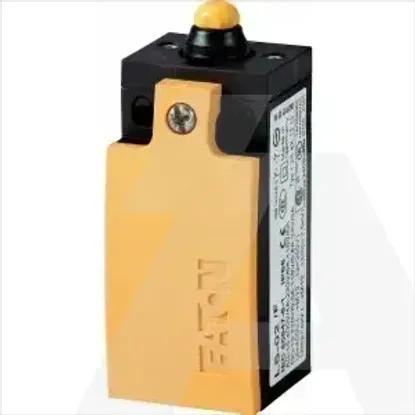

Details
- •Sensors
- •End switch
- •1 KOM
- •EATON
Technical specifications
Switching functionSlow-action switch
Rated operation current Ie at AC-15, 230 V6A
Material housingPlastic
Rated operation current Ie at DC-13, 230 V0.3A
Suitable for safety functionsYes
With status indicationNo
Coating housingOther
Type of electric connectionCable entry metrical
Type of interface for safety communicationNone
Explosion safety category for dustNone
Explosion safety category for gasNone
Forced openingYes
Rated operation current Ie at AC-15, 125 V6A
Number of contacts as normally open contact1
Type of interfaceNone
Number of contacts as change-over contact0
Ambient temperature during operating-25 - 70°C
Length of sensor33.5mm
Number of safety auxiliary contacts1
Rated operation current Ie at AC-15, 24 V6A
Rated operation current Ie at DC-13, 24 V3A
Construction type housingCuboid
Alignment of the control elementRoller cam straight
Diameter sensor0mm
Type of control elementPlunger
Degree of protection (NEMA)Other
Number of contacts as normally closed contact1
Output electronicNo
Switching function latchingNo
Rated operation current Ie at DC-13, 125 V0.8A
Degree of protection (IP)IP66/IP67
Width sensor31mm
Height of sensor61mm
