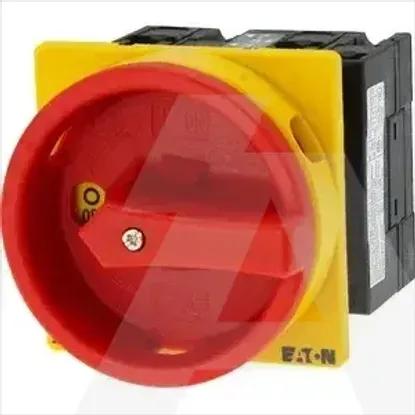

Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu32A
Rated operating voltage690 - 690V
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-3, 400 V11kW
InterlockableYes
Number of switches1
Conditioned rated short-circuit current Iq1kA
Degree of protection (IP), front sideIP65
Number of poles4
Number of auxiliary contacts as normally closed contact0
Type of electrical connection of main circuitScrew connection
Version as maintenance-/service switchYes
Version as emergency stop installationYes
Motor drive integratedNo
Version as safety switchNo
Version as main switchYes
Type of control elementDoor coupling rotary drive
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Rated short-time withstand current lcw0.65kA
Rated operation power at AC-23, 400 V15kW
Suitable for distribution board installationNo
Suitable for floor mountingNo
Suitable for front mounting centreYes
Device constructionBuilt-in device fixed built-in technique
Colour control elementRed
Version as reversing switchNo
Max. rated operation voltage Ue AC690V
Motor drive optionalNo
Degree of protection (NEMA)12
Rated permanent current at AC-23, 400 V32A
Voltage release optionalNo
Switching power at 400 V15kW
Rated permanent current at AC-21, 400 V32A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
T3-2-8324/EA/SVB
