Details

  • •Low-voltage industrial components
  • •Switch disconnector
  • •1 KOM
  • •EATON

Technical specifications

Number of auxiliary contacts as normally closed contact0
Number of switches1
InterlockableNo
Version as emergency stop installationNo
Rated operation power at AC-3, 400 V5.5kW
Rated permanent current Iu20A
Number of poles4
Conditioned rated short-circuit current Iq6kA
Type of control elementToggle
Number of auxiliary contacts as normally open contact0
Rated operating voltage690 - 690V
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as change-over contact0
Version as main switchNo
Version as safety switchNo
Colour control elementBlack
Suitable for floor mountingNo
Type of electrical connection of main circuitScrew connection
Rated short-time withstand current lcw0.32kA
Rated operation power at AC-23, 400 V5.5kW
Version as maintenance-/service switchNo
Motor drive integratedNo
Suitable for front mounting 4-holeNo
Device constructionBuilt-in device fixed built-in technique
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC690V
Rated permanent current at AC-23, 400 V13.3A
Switching power at 400 V5.5kW
Suitable for front mounting centreYes
Rated permanent current at AC-21, 400 V20A
Suitable for distribution board installationNo
Motor drive optionalNo
Version as reversing switchNo
Degree of protection (NEMA)12
Voltage release optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

T0-2-8324/EZ

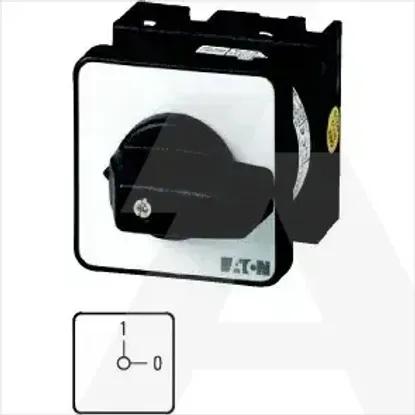

Main Product Image
