Details
- •Low-voltage industrial components

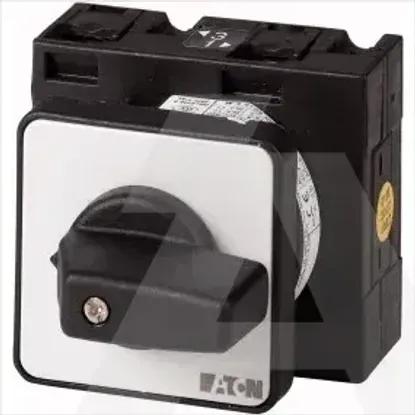

- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width61mm
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact2
Rated operation power at AC-3, 400 V11kW
Depth102mm
Number of poles3
Conditioned rated short-circuit current Iq1kA
Rated operating voltage690 - 690V
Type of electrical connection of main circuitScrew connection
InterlockableNo
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Number of switches1
Height54mm
Rated permanent current Iu32A
Colour control elementBlack
Version as main switchNo
Rated short-time withstand current lcw0.65kA
Version as safety switchNo
Type of control elementShort thumb-grip
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V15kW
Suitable for floor mountingNo
Rated permanent current at AC-21, 400 V32A
Motor drive optionalNo
Version as reversing switchNo
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-23, 400 V32A
Suitable for front mounting 4-holeYes
Voltage release optionalNo
Suitable for front mounting centreNo
Max. rated operation voltage Ue AC690V
Switching power at 400 V15kW
Suitable for intermediate mountingNo
With pre-assembled cablingNo
Suitable for distribution board installationNo
Degree of protection (NEMA)12
Version as maintenance-/service switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
T3-3-15683/E
