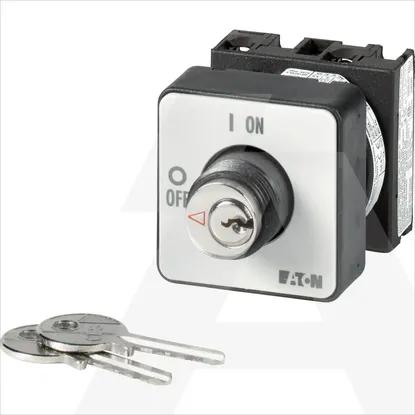

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Height48mm
Number of auxiliary contacts as normally open contact0
Depth96mm
Width48mm
Rated operation power at AC-3, 400 V5.5kW
Rated permanent current Iu20A
Number of auxiliary contacts as normally closed contact0
Rated operating voltage690 - 690V
Number of poles2
Conditioned rated short-circuit current Iq6kA
Version as emergency stop installationNo
Colour control elementBlack
Degree of protection (IP), front sideIP53
Suitable for floor mountingNo
Number of switches1
Motor drive integratedNo
Number of auxiliary contacts as change-over contact0
InterlockableYes
Rated short-time withstand current lcw0.32kA
Version as safety switchNo
Version as maintenance-/service switchNo
Version as main switchNo
Suitable for front mounting centreYes
Suitable for distribution board installationNo
Type of control elementKey
Rated operation power at AC-23, 400 V5.5kW
Suitable for front mounting 4-holeNo
Device constructionBuilt-in device fixed built-in technique
Max. rated operation voltage Ue AC690V
Type of electrical connection of main circuitScrew connection
Suitable for intermediate mountingNo
Motor drive optionalNo
Rated permanent current at AC-21, 400 V20A
Switching power at 400 V5.5kW
Voltage release optionalNo
Rated permanent current at AC-23, 400 V13.3A
Version as reversing switchNo
Degree of protection (NEMA)Other
With pre-assembled cablingNo
