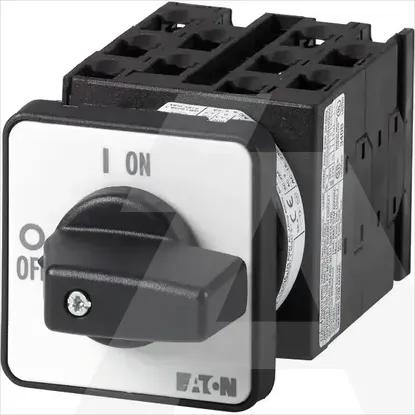

T0-5-8346/E
Code: 1036132
ManufacturerEaton
Catalog number014976
TypeT0-5-8346/E
CategorySwitch disconnector
EAN code4015080149767
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
InterlockableNo
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as normally closed contact0
Rated operating voltage690 - 690V
Rated operation power at AC-3, 400 V5.5kW
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as normally open contact0
Motor drive integratedNo
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq6kA
Number of switches1
Rated operation power at AC-23, 400 V5.5kW
Suitable for front mounting centreNo
Colour control elementBlack
Rated short-time withstand current lcw0.32kA
Motor drive optionalNo
Suitable for floor mountingNo
Version as maintenance-/service switchNo
Version as emergency stop installationNo
Suitable for front mounting 4-holeYes
Suitable for intermediate mountingNo
Type of control elementToggle
Device constructionBuilt-in device fixed built-in technique
Version as main switchNo
Suitable for distribution board installationNo
Rated permanent current at AC-21, 400 V20A
Rated permanent current at AC-23, 400 V13.3A
Version as reversing switchNo
Version as safety switchNo
Degree of protection (NEMA)12
Switching power at 400 V5.5kW
Voltage release optionalNo
Rated permanent current Iu20A
Number of poles10
Max. rated operation voltage Ue AC690V
