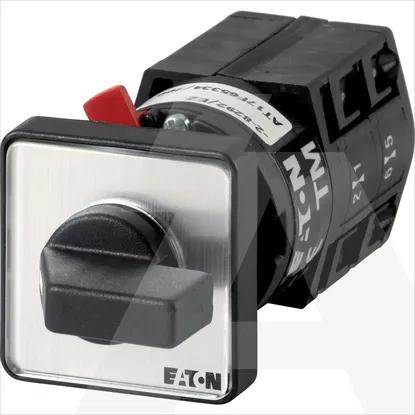

TM-2-8292/EZ
Code: 1036150
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Rated permanent current at AC-23, 400 V6.6A
Version as emergency stop installationNo
Rated permanent current at AC-21, 400 V0A
Version as safety switchNo
Rated operating voltage500 - 500V
Version as main switchNo
Version as maintenance-/service switchNo
Number of switches1
Rated short-time withstand current lcw0kA
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-23, 400 V3kW
Number of auxiliary contacts as change-over contact0
Max. rated operation voltage Ue AC500V
Suitable for front mounting 4-holeNo
Device constructionBuilt-in device fixed built-in technique
Version as reversing switchNo
Rated permanent current Iu10A
Number of auxiliary contacts as normally closed contact0
Number of poles3
Conditioned rated short-circuit current Iq0kA
Switching power at 400 V0kW
Rated operation power at AC-3, 400 V0kW
Suitable for floor mountingNo
Motor drive integratedNo
Motor drive optionalNo
Voltage release optionalNo
Colour control elementBlack
InterlockableNo
Type of control elementShort thumb-grip
Depth87mm
Degree of protection (NEMA)12
Suitable for intermediate mountingNo
Suitable for front mounting centreYes
Type of electrical connection of main circuitScrew connection
With pre-assembled cablingNo
Height30mm
Suitable for distribution board installationNo
Width30mm
Degree of protection (IP), front sideIP65
Related products
