Aleta.hr

Details

  • •Low-voltage industrial components
  • •Switch disconnector
  • •1 KOM
  • •EATON

Technical specifications

Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Rated operation power at AC-3, 400 V5.5kW
Rated permanent current Iu20A
Conditioned rated short-circuit current Iq6kA
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact0
Rated short-time withstand current lcw0.32kA
Rated operation power at AC-23, 400 V5.5kW
Type of control elementDoor coupling rotary drive
Version as main switchNo
Type of electrical connection of main circuitScrew connection
Degree of protection (IP), front sideIP65
Rated operating voltage690 - 690V
Version as maintenance-/service switchNo
Colour control elementBlack
Version as emergency stop installationNo
Version as safety switchNo
Suitable for floor mountingYes
InterlockableNo
Number of switches1
Number of poles1
Motor drive optionalNo
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-23, 400 V13.3A
Degree of protection (NEMA)12
Rated permanent current at AC-21, 400 V20A
Voltage release optionalNo
Suitable for intermediate mountingYes
Suitable for distribution board installationNo
Max. rated operation voltage Ue AC690V
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Version as reversing switchNo
Switching power at 400 V5.5kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

T0-1-15111/Z

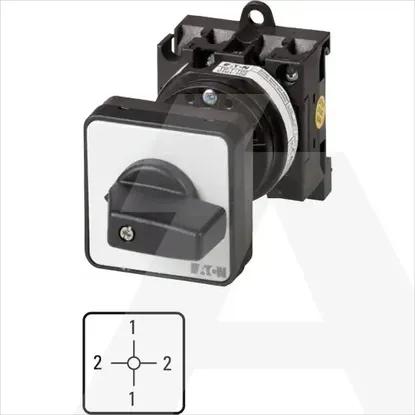

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Low-voltage industrial components
  • Switch disconnector
  • 1 KOM
  • EATON

Technical specifications

Number of auxiliary contacts as normally closed contact

0

Motor drive integrated

Rated operation power at AC-3, 400 V

5.5kW

Rated permanent current Iu

20A

Conditioned rated short-circuit current Iq

6kA

Number of auxiliary contacts as change-over contact

0

Number of auxiliary contacts as normally open contact

0

Rated short-time withstand current lcw

0.32kA

Rated operation power at AC-23, 400 V

5.5kW

Type of control element

Door coupling rotary drive

Version as main switch

Type of electrical connection of main circuit

Screw connection

Degree of protection (IP), front side

IP65

Rated operating voltage

690 .. 690V

Version as maintenance-/service switch

Colour control element

Black

Version as emergency stop installation

Version as safety switch

Suitable for floor mounting

Interlockable

Number of switches

1

Number of poles

1

Motor drive optional

Device construction

Built-in device fixed built-in technique

Rated permanent current at AC-23, 400 V

13.3A

Degree of protection (NEMA)

12

Rated permanent current at AC-21, 400 V

20A

Voltage release optional

Suitable for intermediate mounting

Suitable for distribution board installation

Max. rated operation voltage Ue AC

690V

Suitable for front mounting centre

Suitable for front mounting 4-hole

Version as reversing switch

Switching power at 400 V

5.5kW

VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
