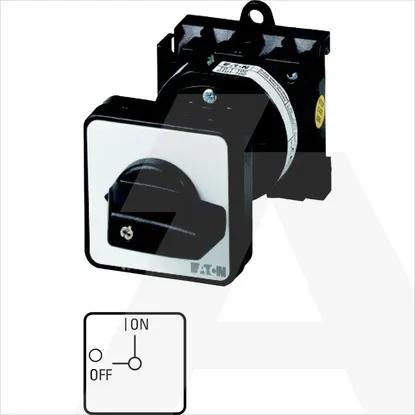

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V11kW
Height54mm
Width61mm
Depth156mm
Rated permanent current Iu32A
Number of poles8
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq1kA
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP65
InterlockableNo
Motor drive integratedNo
Rated short-time withstand current lcw0.65kA
Suitable for front mounting centreNo
Version as safety switchNo
Suitable for floor mountingYes
Colour control elementBlack
Type of electrical connection of main circuitScrew connection
Rated operation power at AC-23, 400 V15kW
Type of control elementDoor coupling rotary drive
Version as emergency stop installationNo
Number of switches1
Version as main switchNo
Suitable for front mounting 4-holeNo
Version as maintenance-/service switchNo
Suitable for intermediate mountingYes
Max. rated operation voltage Ue AC690V
Suitable for distribution board installationNo
Motor drive optionalNo
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Switching power at 400 V15kW
Rated permanent current at AC-21, 400 V32A
Version as reversing switchNo
Rated permanent current at AC-23, 400 V32A
With pre-assembled cablingNo
Degree of protection (NEMA)12
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
T3-4-8344/Z
