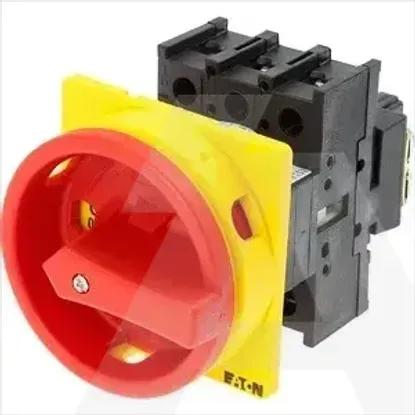

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width65mm
Height65mm
Rated operation power at AC-3, 400 V7.5kW
Number of auxiliary contacts as normally open contact0
Type of control elementDoor coupling rotary drive
Version as main switchYes
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Conditioned rated short-circuit current Iq80kA
Type of electrical connection of main circuitScrew connection
InterlockableYes
Depth119mm
Number of poles3
Degree of protection (IP), front sideIP65
Rated permanent current Iu25A
Version as emergency stop installationYes
Number of switches1
Rated operating voltage690 - 690V
Number of auxiliary contacts as change-over contact0
Suitable for front mounting centreNo
Version as maintenance-/service switchYes
Suitable for front mounting 4-holeYes
Version as safety switchNo
Rated short-time withstand current lcw0.64kA
Rated operation power at AC-23, 400 V13kW
Colour control elementRed
Suitable for floor mountingNo
Version as reversing switchNo
Switching power at 400 V13kW
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Motor drive optionalNo
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-21, 400 V25A
Voltage release optionalNo
Max. rated operation voltage Ue AC690V
With pre-assembled cablingNo
Degree of protection (NEMA)12
Rated permanent current at AC-23, 400 V25A
