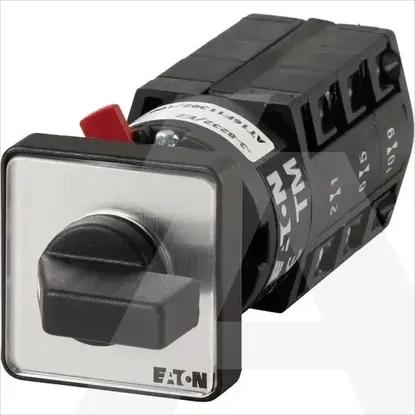

TM-3-8326/EZ
Code: 1039188
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Number of poles6
Type of control elementToggle
Rated permanent current Iu10A
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as change-over contact0
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalNo
Rated operation power at AC-3, 400 V0kW
Degree of protection (NEMA)Other
Degree of protection (IP), front sideIP65
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Conditioned rated short-circuit current Iq0kA
Rated operating voltage500 - 500V
Rated short-time withstand current lcw0kA
Max. rated operation voltage Ue AC500V
Suitable for front mounting 4-holeNo
Version as emergency stop installationNo
Version as safety switchNo
Version as reversing switchNo
Voltage release optionalNo
Rated permanent current at AC-21, 400 V0A
InterlockableNo
Version as maintenance-/service switchNo
Switching power at 400 V0kW
Number of switches1
Rated permanent current at AC-23, 400 V6.6A
Version as main switchNo
Rated operation power at AC-23, 400 V0kW
Suitable for front mounting centreYes
Colour control elementBlack
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
TM-3-8326/EZ
Details
- Low-voltage industrial components
- Switch disconnector
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Number of poles
6
Type of control element
Toggle
Rated permanent current Iu
10A
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Motor drive integrated
Type of electrical connection of main circuit
Screw connection
Number of auxiliary contacts as change-over contact
0
Device construction
Built-in device fixed built-in technique
Motor drive optional
Rated operation power at AC-3, 400 V
0kW
Degree of protection (NEMA)
Other
Degree of protection (IP), front side
IP65
Suitable for floor mounting
Suitable for intermediate mounting
Suitable for distribution board installation
Conditioned rated short-circuit current Iq
0kA
Rated operating voltage
500 .. 500V
Rated short-time withstand current lcw
0kA
Max. rated operation voltage Ue AC
500V
Suitable for front mounting 4-hole
Version as emergency stop installation
Version as safety switch
Version as reversing switch
Voltage release optional
Rated permanent current at AC-21, 400 V
0A
Interlockable
Version as maintenance-/service switch
Switching power at 400 V
0kW
Number of switches
1
Rated permanent current at AC-23, 400 V
6.6A
Version as main switch
Rated operation power at AC-23, 400 V
0kW
Suitable for front mounting centre
Colour control element
Black
