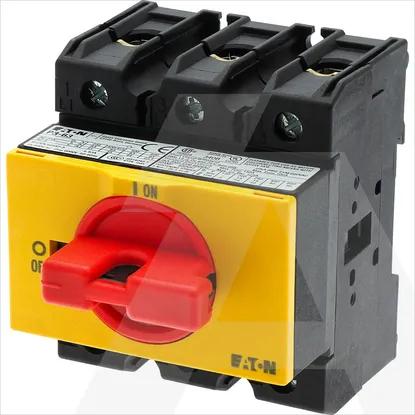

Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •EATON
Technical specifications
Depth87mm
Height83mm
Width72mm
Rated operation power at AC-3, 400 V30kW
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq100kA
Type of electrical connection of main circuitScrew connection
Degree of protection (IP), front sideIP30
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Rated operating voltage690 - 690V
Motor drive integratedNo
Type of control elementShort thumb-grip
Rated short-time withstand current lcw1.26kA
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Rated operation power at AC-23, 400 V30kW
Version as safety switchNo
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Motor drive optionalNo
Switching power at 400 V30kW
With pre-assembled cablingNo
Rated permanent current at AC-21, 400 V63A
Voltage release optionalNo
Version as reversing switchNo
Rated permanent current at AC-23, 400 V63A
Degree of protection (NEMA)Other
Version as main switchYes
Version as maintenance-/service switchYes
Max. rated operation voltage Ue AC690V
Device constructionBuilt-in device fixed built-in technique
Number of poles3
Rated permanent current Iu63A
Colour control elementRed
InterlockableYes
Colour housingBlack
Version as emergency stop installationYes
Suitable for distribution board installationYes
Number of switches1
