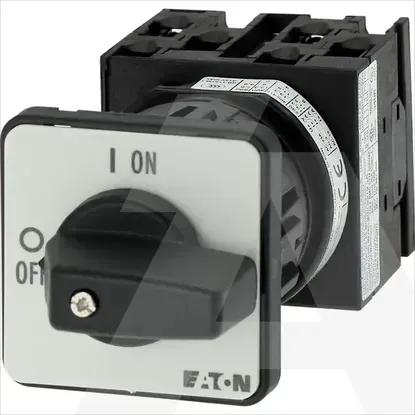

T0-3-8342/EZ
Code: 1039200
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Rated permanent current at AC-23, 400 V13.3A
Version as maintenance-/service switchNo
Version as safety switchNo
Version as emergency stop installationNo
Version as reversing switchNo
Version as main switchNo
Max. rated operation voltage Ue AC690V
Rated permanent current Iu20A
Number of switches1
Rated short-time withstand current lcw0.32kA
Rated operating voltage690 - 690V
Switching power at 400 V5.5kW
Rated permanent current at AC-21, 400 V20A
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq6kA
Rated operation power at AC-3, 400 V5.5kW
Number of auxiliary contacts as normally closed contact0
Motor drive optionalNo
Number of auxiliary contacts as normally open contact0
Number of poles6
Suitable for floor mountingNo
Voltage release optionalNo
Motor drive integratedNo
Suitable for distribution board installationNo
Type of control elementShort thumb-grip
With pre-assembled cablingNo
Suitable for intermediate mountingNo
Colour control elementBlack
Type of electrical connection of main circuitScrew connection
Suitable for front mounting centreYes
Device constructionBuilt-in device fixed built-in technique
Rated operation power at AC-23, 400 V5.5kW
Suitable for front mounting 4-holeNo
InterlockableNo
Width48mm
Degree of protection (NEMA)12
Depth115mm
Height48mm
Degree of protection (IP), front sideIP65
