Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width49mm
Height70mm
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally open contact0
Depth130mm
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V13kW
Number of poles3
Rated permanent current Iu32A
Type of control elementShort thumb-grip
InterlockableNo
Version as emergency stop installationNo
Type of electrical connection of main circuitScrew connection
Conditioned rated short-circuit current Iq80kA
Number of switches1
Number of auxiliary contacts as change-over contact0
Version as main switchYes
Motor drive integratedNo
Degree of protection (IP), front sideIP65
Suitable for intermediate mountingYes
Suitable for front mounting centreNo
Rated short-time withstand current lcw0.64kA
Version as maintenance-/service switchYes
Suitable for front mounting 4-holeNo
Suitable for floor mountingYes
Suitable for distribution board installationYes
Version as safety switchNo
Colour control elementOther
Rated operation power at AC-23, 400 V15kW
Rated permanent current at AC-21, 400 V32A
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Max. rated operation voltage Ue AC690V
Motor drive optionalNo
Rated permanent current at AC-23, 400 V32A
Version as reversing switchNo
Degree of protection (NEMA)12
Switching power at 400 V15kW
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

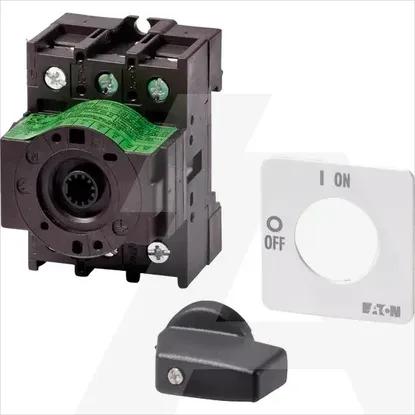

P1-32/XZ
