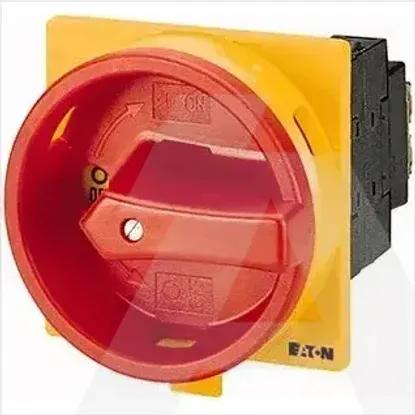

P1-32/EZ
Code: 1039263
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as emergency stop installationNo
Version as main switchNo
Version as safety switchNo
Version as maintenance-/service switchNo
Rated short-time withstand current lcw0.64kA
Version as reversing switchNo
Max. rated operation voltage Ue AC690V
Rated operating voltage690 - 690V
Rated permanent current at AC-21, 400 V32A
Rated permanent current Iu32A
Rated operation power at AC-3, 400 V13kW
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-23, 400 V15kW
Number of poles3
Number of auxiliary contacts as change-over contact0
Switching power at 400 V15kW
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Suitable for floor mountingNo
Number of auxiliary contacts as normally open contact0
Rated permanent current at AC-23, 400 V32A
Suitable for front mounting centreYes
Suitable for distribution board installationNo
InterlockableNo
Conditioned rated short-circuit current Iq80kA
Motor drive optionalNo
Suitable for intermediate mountingNo
Motor drive integratedNo
Degree of protection (NEMA)12
With pre-assembled cablingNo
Colour control elementBlack
Number of switches1
Type of control elementShort thumb-grip
Type of electrical connection of main circuitScrew connection
Width49mm
Degree of protection (IP), front sideIP65
Suitable for front mounting 4-holeNo
Depth95mm
Height70mm
