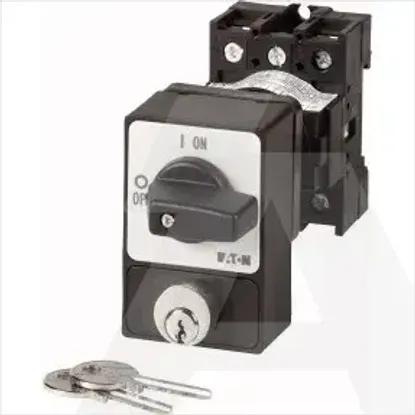

P1-25/Z/SVA(A)
Code: 1039290
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as maintenance-/service switchNo
Rated operating voltage690 - 690V
Rated operation power at AC-3, 400 V7.5kW
Rated operation power at AC-23, 400 V13kW
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Rated permanent current at AC-21, 400 V25A
Version as emergency stop installationNo
Number of auxiliary contacts as normally open contact0
Voltage release optionalNo
Version as safety switchNo
Motor drive optionalNo
Suitable for floor mountingNo
Number of switches1
Version as reversing switchNo
Rated permanent current at AC-23, 400 V25A
Suitable for intermediate mountingYes
Colour control elementBlack
Rated permanent current Iu25A
Rated short-time withstand current lcw0.64kA
InterlockableNo
Switching power at 400 V13kW
Conditioned rated short-circuit current Iq50kA
Device constructionBuilt-in device fixed built-in technique
Suitable for front mounting 4-holeNo
Width49mm
Type of electrical connection of main circuitScrew connection
Depth176mm
Suitable for distribution board installationNo
With pre-assembled cablingNo
Number of auxiliary contacts as change-over contact0
Number of poles3
Suitable for front mounting centreNo
Type of control elementShort thumb-grip
Degree of protection (NEMA)12
Degree of protection (IP), front sideIP65
Height73mm
Version as main switchNo
Max. rated operation voltage Ue AC690V
