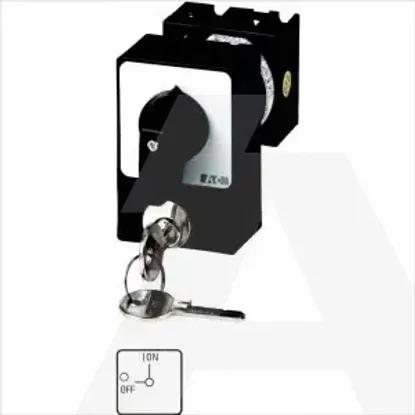

T0-2-1/E/SVA(A)
Code: 1039295
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Rated permanent current at AC-23, 400 V13.3A
Version as main switchNo
Version as maintenance-/service switchNo
Version as reversing switchNo
Number of switches1
Max. rated operation voltage Ue AC690V
Rated permanent current at AC-21, 400 V20A
Rated operation power at AC-3, 400 V5.5kW
Rated permanent current Iu20A
Version as safety switchNo
Rated operating voltage690 - 690V
Rated operation power at AC-23, 400 V5.5kW
Switching power at 400 V5.5kW
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact0
Motor drive integratedNo
Conditioned rated short-circuit current Iq6kA
Number of poles3
Voltage release optionalNo
Motor drive optionalNo
Rated short-time withstand current lcw0.32kA
Suitable for floor mountingNo
Version as emergency stop installationNo
Device constructionBuilt-in device fixed built-in technique
Suitable for distribution board installationNo
Suitable for front mounting centreNo
Type of control elementShort thumb-grip
Type of electrical connection of main circuitScrew connection
Colour control elementBlack
InterlockableYes
With pre-assembled cablingNo
Degree of protection (IP), front sideIP65
Width49mm
Depth131mm
Degree of protection (NEMA)12
Suitable for intermediate mountingNo
Height73mm
Suitable for front mounting 4-holeYes
