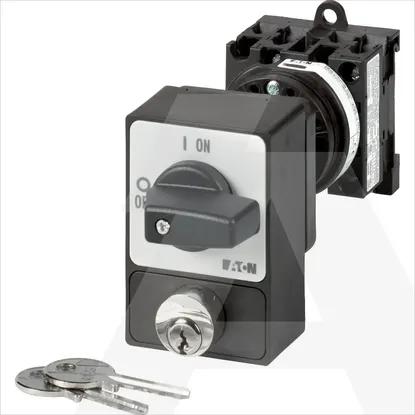

T0-2-1/Z/SVA(A)
Code: 1039297
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Rated permanent current at AC-23, 400 V13.3A
Version as reversing switchNo
Version as maintenance-/service switchNo
Number of switches1
Version as emergency stop installationNo
Max. rated operation voltage Ue AC690V
Number of poles3
Version as main switchNo
Rated permanent current at AC-21, 400 V20A
Rated permanent current Iu20A
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-23, 400 V5.5kW
Rated operation power at AC-3, 400 V5.5kW
Rated operating voltage690 - 690V
Switching power at 400 V5.5kW
Number of auxiliary contacts as normally open contact0
Version as safety switchNo
Conditioned rated short-circuit current Iq6kA
Motor drive optionalNo
Rated short-time withstand current lcw0.32kA
Suitable for front mounting centreNo
Number of auxiliary contacts as change-over contact0
Device constructionBuilt-in device fixed built-in technique
Suitable for floor mountingYes
Suitable for distribution board installationNo
Suitable for front mounting 4-holeNo
Voltage release optionalNo
Motor drive integratedNo
Suitable for intermediate mountingYes
Type of control elementDoor coupling rotary drive
InterlockableYes
Type of electrical connection of main circuitScrew connection
Colour control elementBlack
With pre-assembled cablingNo
Width49mm
Degree of protection (IP), front sideIP65
Height73mm
Degree of protection (NEMA)12
Depth173mm
