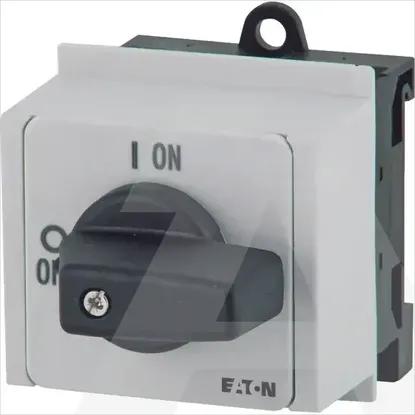

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Depth91mm
Width69mm
Height70mm
Number of auxiliary contacts as normally closed contact1
Motor drive integratedNo
Rated operating voltage690 - 690V
Rated permanent current Iu25A
Number of auxiliary contacts as normally open contact1
Number of switches1
Number of poles3
Conditioned rated short-circuit current Iq50kA
Type of control elementShort thumb-grip
Version as main switchNo
Version as maintenance-/service switchNo
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitScrew connection
Version as safety switchNo
Degree of protection (IP), front sideIP30
Rated operation power at AC-3, 400 V7.5kW
Version as emergency stop installationNo
Colour control elementBlack
Suitable for front mounting 4-holeNo
Rated operation power at AC-23, 400 V13kW
Rated short-time withstand current lcw0.64kA
InterlockableNo
Suitable for distribution board installationYes
Suitable for front mounting centreNo
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Motor drive optionalNo
Max. rated operation voltage Ue AC690V
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-21, 400 V25A
Switching power at 400 V13kW
Version as reversing switchNo
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V25A
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
P1-25/IVS/HI11
