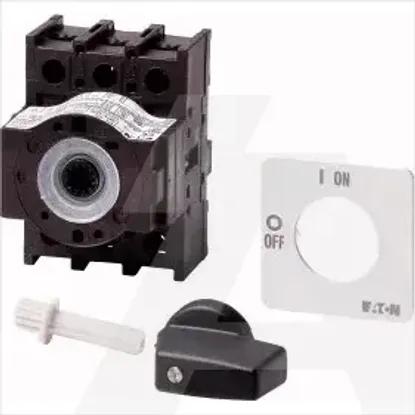

P1-32/XE/AE
Code: 1039332
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Number of poles3
Type of control elementOther
Rated permanent current Iu32A
Number of auxiliary contacts as normally closed contact0
Motor drive optionalNo
Number of auxiliary contacts as normally open contact0
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as change-over contact0
Device constructionBuilt-in device fixed built-in technique
Rated operation power at AC-3, 400 V13kW
Degree of protection (NEMA)1
Suitable for floor mountingYes
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
Degree of protection (IP), front sideIP65
Conditioned rated short-circuit current Iq80kA
Max. rated operation voltage Ue AC690V
Rated operating voltage690 - 690V
Rated short-time withstand current lcw0.64kA
Suitable for front mounting 4-holeNo
Version as emergency stop installationNo
Suitable for front mounting centreNo
Version as reversing switchNo
Rated permanent current at AC-21, 400 V32A
InterlockableNo
Version as maintenance-/service switchYes
Switching power at 400 V15kW
Number of switches1
Rated permanent current at AC-23, 400 V32A
Rated operation power at AC-23, 400 V15kW
Version as main switchYes
Version as safety switchNo
Voltage release optionalNo
Colour control elementOther
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
