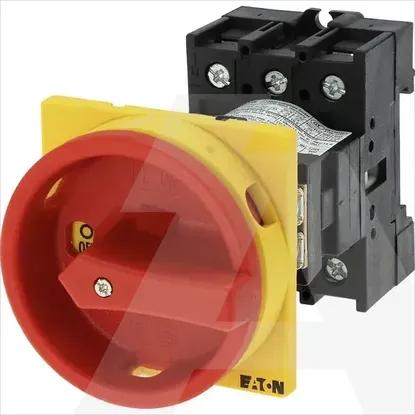

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as maintenance-/service switchYes
Version as emergency stop installationYes
Version as safety switchNo
Rated operation power at AC-23, 400 V13kW
Number of auxiliary contacts as change-over contact0
Number of poles3
Number of switches1
Suitable for floor mountingNo
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu25A
Rated short-time withstand current lcw0.64kA
Rated operation power at AC-3, 400 V7.5kW
Switching power at 400 V13kW
Version as reversing switchNo
Motor drive optionalNo
Rated operating voltage690 - 690V
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-21, 400 V25A
Voltage release optionalNo
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq50kA
Suitable for front mounting centreNo
Rated permanent current at AC-23, 400 V25A
Motor drive integratedNo
Suitable for front mounting 4-holeNo
Max. rated operation voltage Ue AC690V
Version as main switchYes
Suitable for intermediate mountingNo
Type of control elementDoor coupling rotary drive
Degree of protection (NEMA)12
InterlockableYes
Degree of protection (IP), front sideIP65
Depth131mm
Colour control elementRed
Type of electrical connection of main circuitScrew connection
With pre-assembled cablingNo
Suitable for distribution board installationNo
Width65mm
Height65mm
