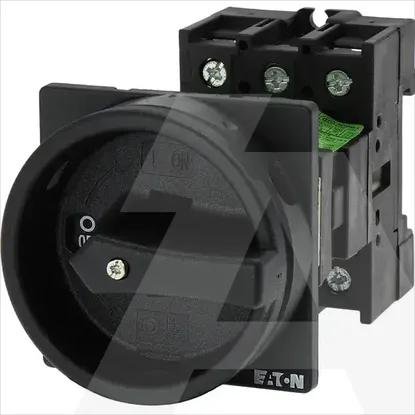

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally closed contact0
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as normally open contact0
Number of poles3
Rated permanent current Iu32A
Width54mm
Height70mm
Motor drive integratedNo
Rated operation power at AC-3, 400 V13kW
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitScrew connection
Rated operating voltage690 - 690V
InterlockableYes
Type of control elementDoor coupling rotary drive
Conditioned rated short-circuit current Iq80kA
Depth90mm
Version as emergency stop installationNo
Number of switches1
Version as safety switchNo
Version as main switchYes
Rated operation power at AC-23, 400 V15kW
Colour control elementBlack
Version as maintenance-/service switchYes
Suitable for floor mountingNo
Rated short-time withstand current lcw0.64kA
Voltage release optionalNo
Max. rated operation voltage Ue AC690V
Suitable for front mounting 4-holeNo
Motor drive optionalNo
Suitable for front mounting centreNo
Rated permanent current at AC-21, 400 V32A
Device constructionBuilt-in device fixed built-in technique
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Switching power at 400 V15kW
Rated permanent current at AC-23, 400 V32A
Version as reversing switchNo
Degree of protection (NEMA)1
With pre-assembled cablingNo
