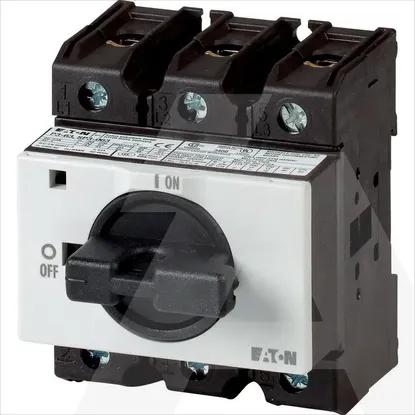

P3-63/IVS/N/HI11
Code: 1039361
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as main switchNo
Rated permanent current Iu63A
Rated operating voltage690 - 690V
Rated operation power at AC-23, 400 V30kW
Version as reversing switchNo
Number of switches1
Switching power at 400 V30kW
Rated permanent current at AC-21, 400 V63A
Rated short-time withstand current lcw1.26kA
Rated permanent current at AC-23, 400 V63A
Rated operation power at AC-3, 400 V30kW
Max. rated operation voltage Ue AC690V
Number of auxiliary contacts as normally closed contact1
Version as maintenance-/service switchNo
Conditioned rated short-circuit current Iq100kA
Version as emergency stop installationNo
Version as safety switchNo
Number of poles4
Number of auxiliary contacts as normally open contact1
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Colour control elementBlack
Suitable for distribution board installationYes
InterlockableNo
Type of control elementShort thumb-grip
With pre-assembled cablingNo
Number of auxiliary contacts as change-over contact0
Motor drive optionalNo
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Degree of protection (NEMA)Other
Voltage release optionalNo
Degree of protection (IP), front sideIP30
Suitable for front mounting centreNo
Width105mm
Device constructionBuilt-in device fixed built-in technique
Height83mm
Depth87mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
