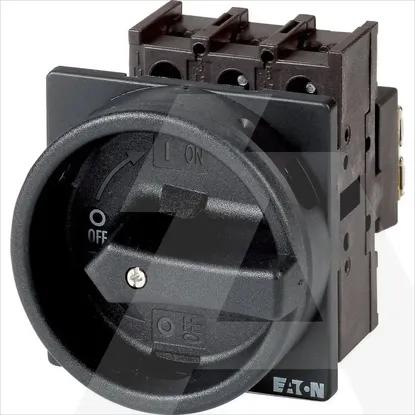

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Height70mm
Depth120mm
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact1
Rated operation power at AC-3, 400 V13kW
Rated operating voltage690 - 690V
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP65
Conditioned rated short-circuit current Iq80kA
Number of switches1
Width80mm
InterlockableYes
Motor drive integratedNo
Version as emergency stop installationNo
Type of electrical connection of main circuitScrew connection
Colour control elementBlack
Version as maintenance-/service switchYes
Version as safety switchNo
Version as main switchYes
Suitable for floor mountingNo
Suitable for distribution board installationNo
Suitable for front mounting centreNo
Suitable for front mounting 4-holeYes
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V32A
Type of control elementDoor coupling rotary drive
Voltage release optionalNo
Rated short-time withstand current lcw0.64kA
Switching power at 400 V15kW
Device constructionBuilt-in device fixed built-in technique
Rated operation power at AC-23, 400 V15kW
Degree of protection (NEMA)1
Rated permanent current at AC-23, 400 V32A
Version as reversing switchNo
With pre-assembled cablingNo
Motor drive optionalNo
Rated permanent current Iu32A
Number of poles4
Max. rated operation voltage Ue AC690V
