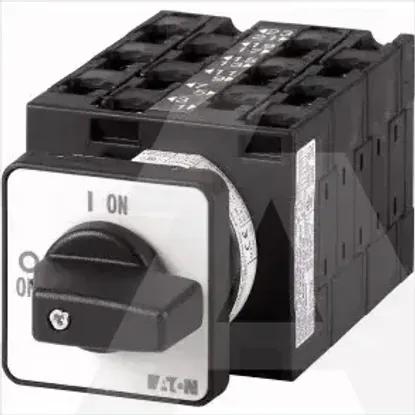

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Rated operation power at AC-3, 400 V11kW
Depth137mm
Width61mm
Number of auxiliary contacts as normally open contact0
Height54mm
Number of auxiliary contacts as normally closed contact0
Number of switches1
Conditioned rated short-circuit current Iq1kA
Rated permanent current Iu32A
Degree of protection (IP), front sideIP65
Number of poles12
Number of auxiliary contacts as change-over contact0
Rated operating voltage690 - 690V
Motor drive integratedNo
InterlockableNo
Type of electrical connection of main circuitScrew connection
Version as main switchNo
Type of control elementShort thumb-grip
Rated operation power at AC-23, 400 V15kW
Version as emergency stop installationNo
Colour control elementBlack
Version as safety switchNo
Version as maintenance-/service switchNo
Rated short-time withstand current lcw0.65kA
Suitable for front mounting 4-holeYes
Voltage release optionalNo
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC690V
Suitable for distribution board installationNo
Suitable for floor mountingNo
Suitable for front mounting centreNo
Motor drive optionalNo
Device constructionBuilt-in device fixed built-in technique
Switching power at 400 V15kW
Degree of protection (NEMA)12
With pre-assembled cablingNo
Rated permanent current at AC-21, 400 V32A
Version as reversing switchNo
Rated permanent current at AC-23, 400 V32A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
T3-6-8348/E
