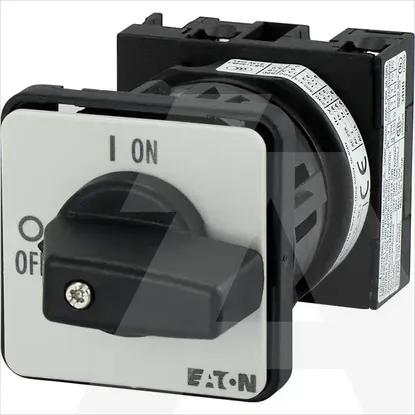

T0-1-8200/EZ
Code: 1039509
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Rated permanent current at AC-23, 400 V13.3A
Version as main switchNo
Version as maintenance-/service switchNo
Version as reversing switchNo
Version as safety switchNo
Number of switches1
Version as emergency stop installationNo
Rated operating voltage690 - 690V
Max. rated operation voltage Ue AC690V
Rated operation power at AC-23, 400 V5.5kW
Rated permanent current at AC-21, 400 V20A
Switching power at 400 V5.5kW
Rated operation power at AC-3, 400 V5.5kW
Rated permanent current Iu20A
Rated short-time withstand current lcw0.32kA
Number of poles1
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq6kA
Motor drive optionalNo
Suitable for front mounting 4-holeNo
Motor drive integratedNo
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Suitable for intermediate mountingNo
Suitable for front mounting centreYes
Suitable for distribution board installationNo
With pre-assembled cablingNo
Degree of protection (NEMA)12
Degree of protection (IP), front sideIP65
Colour control elementBlack
Height48mm
Suitable for floor mountingNo
Number of auxiliary contacts as normally closed contact0
Type of control elementShort thumb-grip
Width48mm
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitScrew connection
Depth96mm
InterlockableNo
Related products
