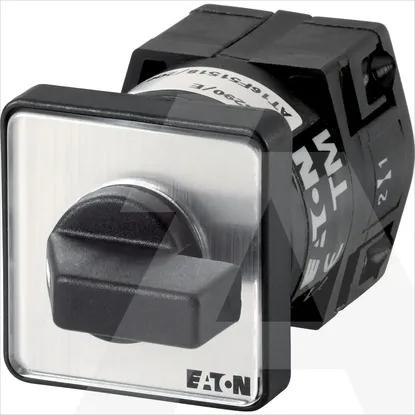

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of poles1
Rated operating voltage690 - 690V
Width30mm
Height30mm
Rated permanent current Iu10A
Depth62mm
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V0kW
Number of switches1
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as normally open contact0
InterlockableNo
Motor drive integratedNo
Version as main switchNo
Type of control elementShort thumb-grip
Conditioned rated short-circuit current Iq0kA
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V3kW
Version as safety switchNo
Colour control elementBlack
Suitable for floor mountingNo
Suitable for distribution board installationNo
Version as maintenance-/service switchNo
Rated short-time withstand current lcw0kA
Suitable for front mounting 4-holeYes
Voltage release optionalNo
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC500V
Motor drive optionalNo
Switching power at 400 V0kW
Version as reversing switchNo
Rated permanent current at AC-23, 400 V6.6A
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-21, 400 V0A
With pre-assembled cablingNo
Suitable for front mounting centreNo
Degree of protection (NEMA)12
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
TM-1-8290/E
