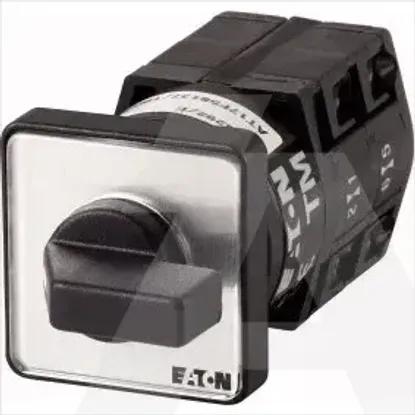

TM-2-8293/E
Code: 1039584
ManufacturerEaton
Catalog number077250
TypeTM-2-8293/E
CategorySwitch disconnector
EAN code4015080772507
Details
- •On/Off switch, 3+N-pole, 10A
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Height30mm
Depth74mm
Number of auxiliary contacts as normally open contact0
Width30mm
Rated operation power at AC-3, 400 V0kW
Number of auxiliary contacts as normally closed contact0
Degree of protection (IP), front sideIP65
Rated operating voltage500 - 500V
Motor drive integratedNo
Conditioned rated short-circuit current Iq0kA
Number of auxiliary contacts as change-over contact0
InterlockableNo
Type of electrical connection of main circuitScrew connection
Number of switches1
Version as emergency stop installationNo
Rated short-time withstand current lcw0kA
Suitable for floor mountingNo
Colour control elementBlack
Version as main switchNo
Version as safety switchNo
Type of control elementShort thumb-grip
Version as maintenance-/service switchNo
Suitable for front mounting 4-holeYes
Rated operation power at AC-23, 400 V3kW
Switching power at 400 V0kW
Version as reversing switchNo
Suitable for intermediate mountingNo
Degree of protection (NEMA)12
Suitable for distribution board installationNo
Rated permanent current at AC-21, 400 V0A
With pre-assembled cablingNo
Suitable for front mounting centreNo
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalNo
Rated permanent current at AC-23, 400 V6.6A
Rated permanent current Iu10A
Number of poles4
Max. rated operation voltage Ue AC500V
